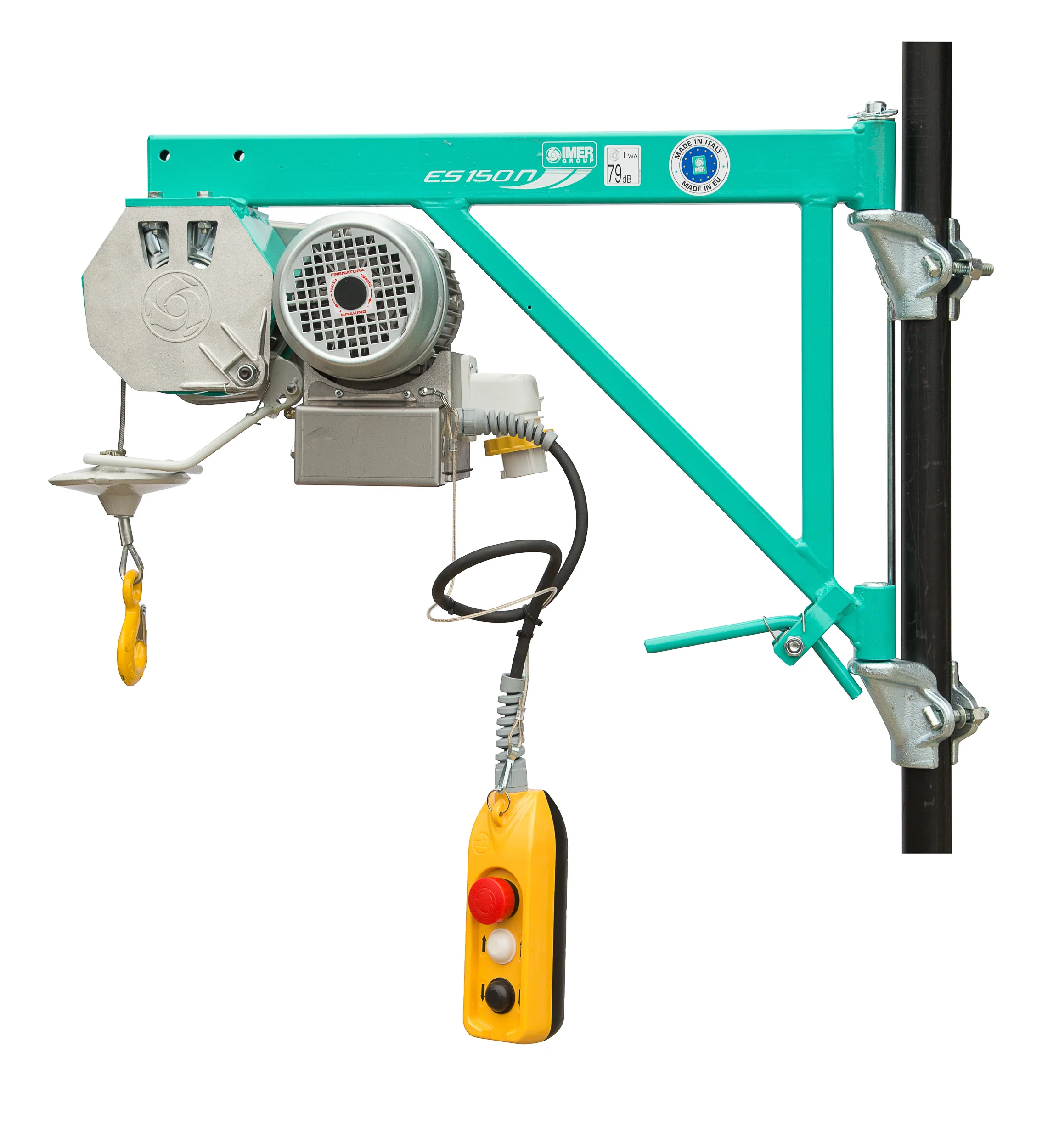

The Imer ES150n Scaffold Hoist is one of our most popular builder's winches, built from quality materials which result in a premium industrial strength product fit for the hire industry. Proudly made in Italy the Imer ES150 Scaffold Hoist boasts a lifting height up to 30m at a speed of 18.5m/min with a load of 150kg. Conveniently running on the standard UK building site power supply of 110v single phase 50hZ, please make a special enquiry for any other voltages as these can often be obtained from the factory.

Designed for outdoor use with an IP67 plug (110v) and an IP65 push button pendant control station (connected to a 1.5m pendant cable). The kit we supply in this package comes with the scaffold clamps and essential fittings required to begin using the hoist.

Superb Increases In Productivity On-Site

The Imer scaffold hoist range has revolutionised the way materials are lifted on building sites, productivity is dramatically increased by speeding up the lifting process enormously, workers are able to spend more time installing goods rather than transporting them- the hard part becomes the easy part!

When purchasing this device there are a couple of considerations that we deem essential:

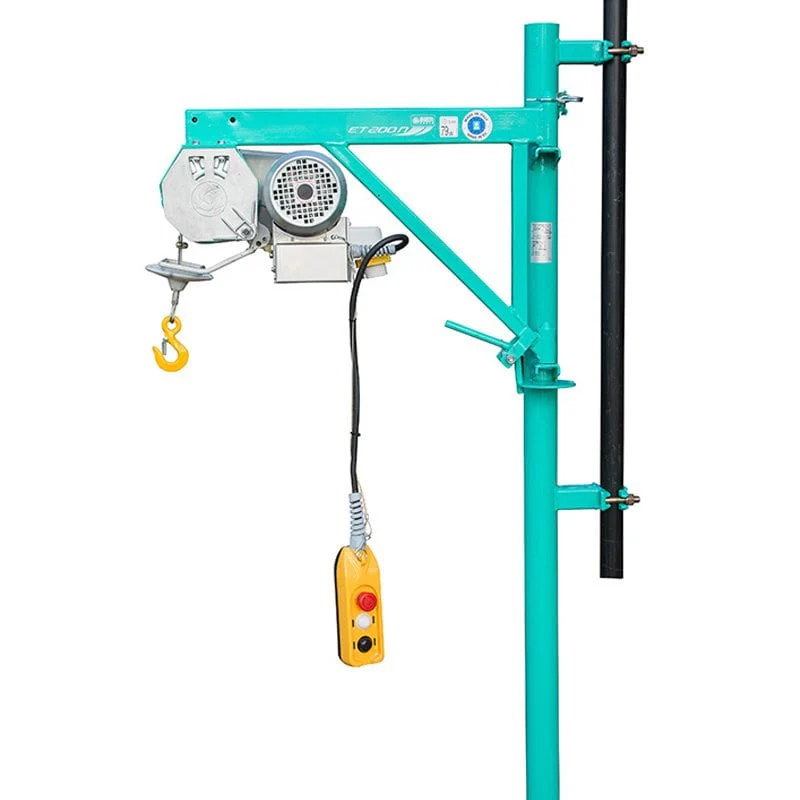

Do not lift more than 150kg with this hoist as this is the rated safe working load, if you need to lift more then we always have a solution- try the ET200 hoist, a similar hoist in terms of functionality, slightly better design and 200kg safe working load, or the Imer TR225, the king of the scaffold hoists, our top model for a 'bolt on' style unit lifting 200kg with all the features of the ET200 but with an extendable arm to provide a further reach up to 1120mm
Do you have a 5kVA 110v single phase 50hz transformer? If not we can certainly supply one- see our 'Customers Also Bought' window below
Are you fitting this to a secure upright scaffold tube? -Yes to this one is essential

General Operational Advice

Ensure correctly installed on an upright scaffold tube before use checking that both clamps are secure
Only install on a professionally installed scaffolding system and not on a portable scaffold tower as loading the hoist could cause a portable scaffold tower to collapse
Read the user manual included before operation

NOTE: Comes with weather cover as standard

Comparing the Imer range:

Feature	ES150	ET200	TR225
Capacity	150kg	200kg	200kg
Lifting Height	30m	30m	30m
Supply	110v 1ph 50hz	110v 1ph 50hz	110v 1ph 50hz
Lifting Speed	18.5m/min	19m/min	19m/min
Machine Weight	39kg	42kg + 17kg Pole	46kg + 17kg Pole
Scaffold Pole Attachment Included (and required)	No	Yes	Yes
Extendable Hoist Bracket Arm	No	No	Yes

Accessories- these can all be found below in 'Customers Also Bought'

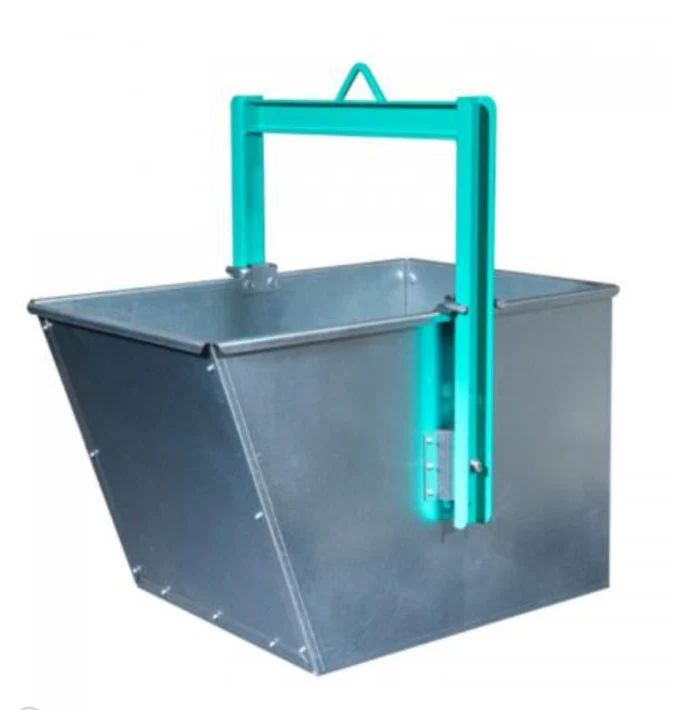

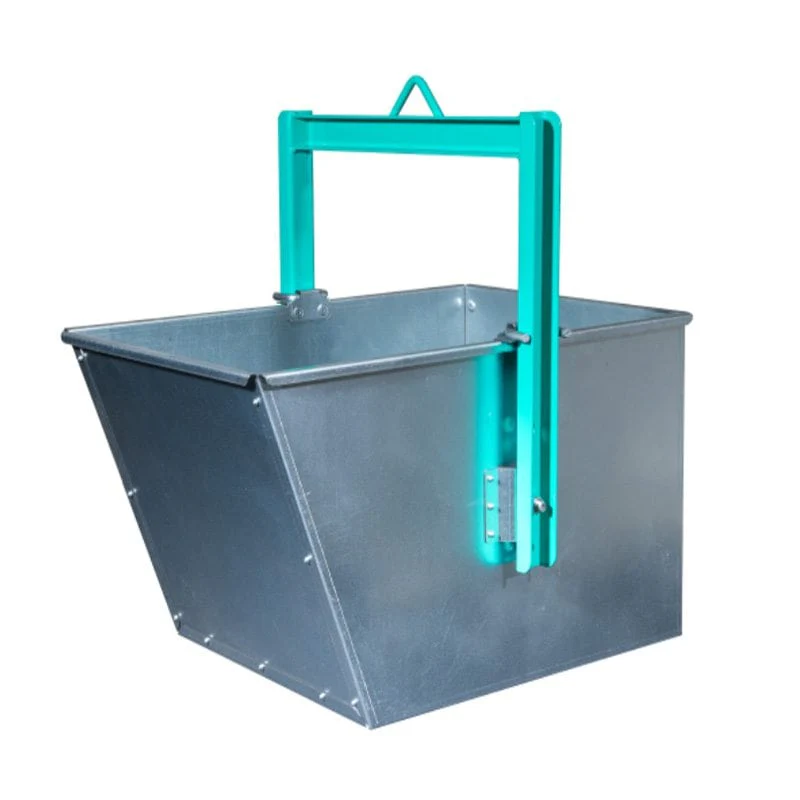

Bucket Carriers- ideal for lifting builders buckets enabling them to be removed and replaced during the process

Brick Baskets- perfect for transporting bricks, tiles and similar items requiring a larger surface area, these are a really popular product!

Scaffold Clips- we do sell spare scaffold clips, and we ship them super fast, we understand people lose things and it creates a crisis, our advice is to keep a spare set safe but if you forgot it's no problem- we will always do our best to get them to you the next day when you need them in an emergency

Recommended bucket: 45 litre
90-litre bucket can be used but we strongly advise for health and safety reasons that you down-rate the safe working load as the 90-litre bucket has a SWL of 200kg whereas the hoist can only lift up to 150kg and you should also consider the weight of the bucket.

Imer Scaffold Hoists

Imer TR225 Scaffold Hoist

Imer ES150 Scaffold Hoist

Imer ET200 Scaffold Hoist

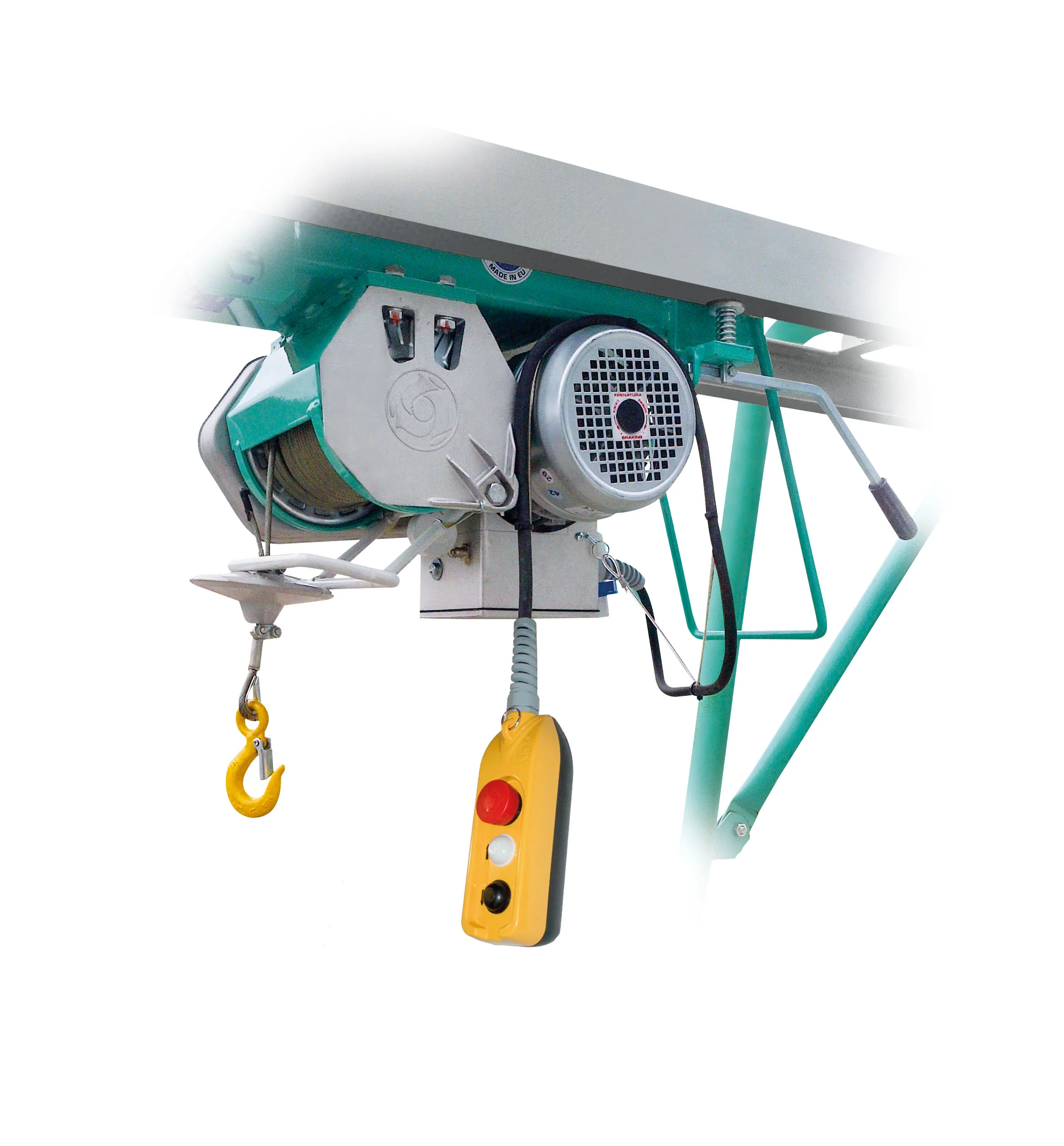

Imer Builders Gantry Hoist System G500

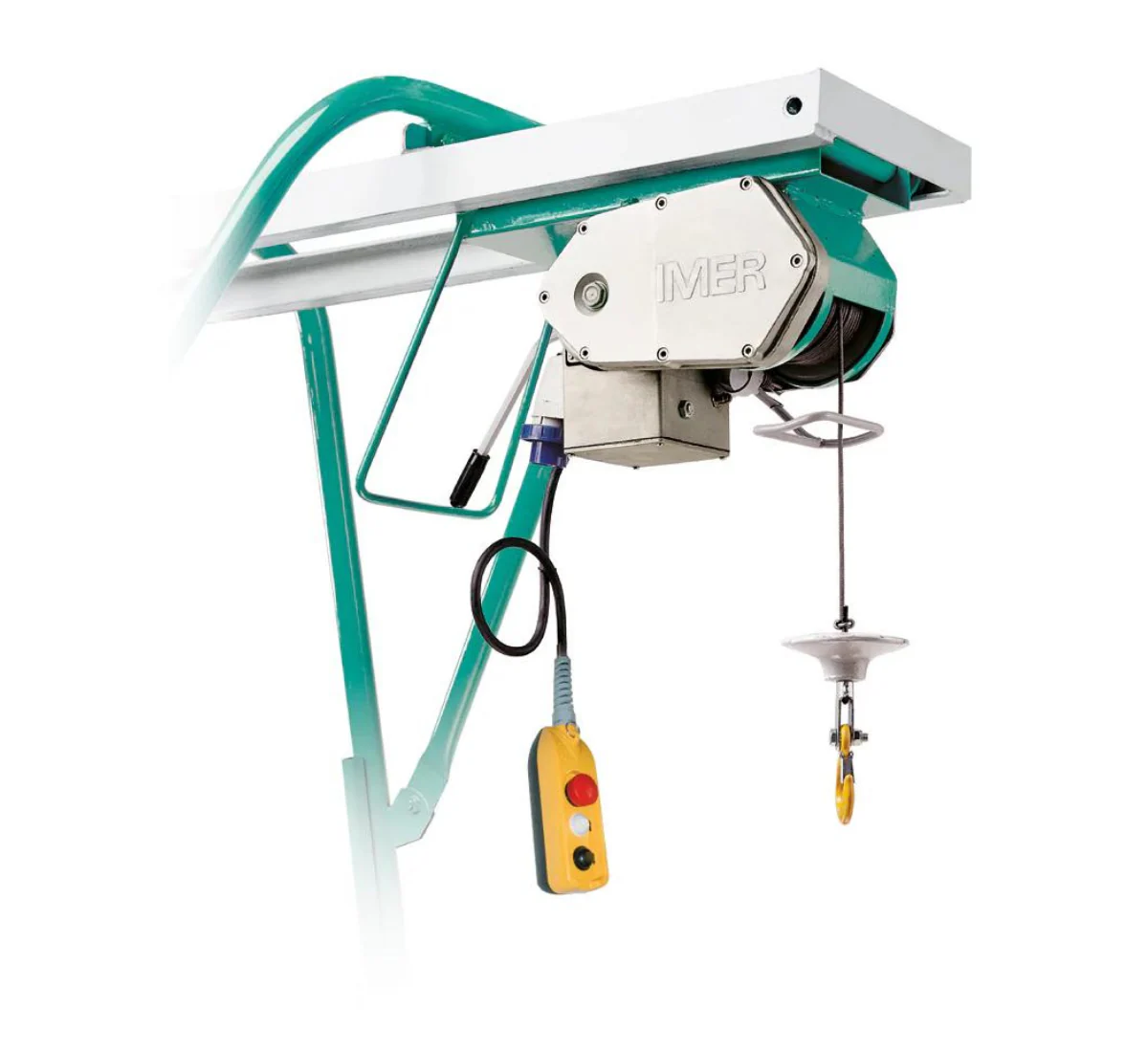

Imer Builders Gantry Hoist System ET300

Imer ES150 Replacement Rope

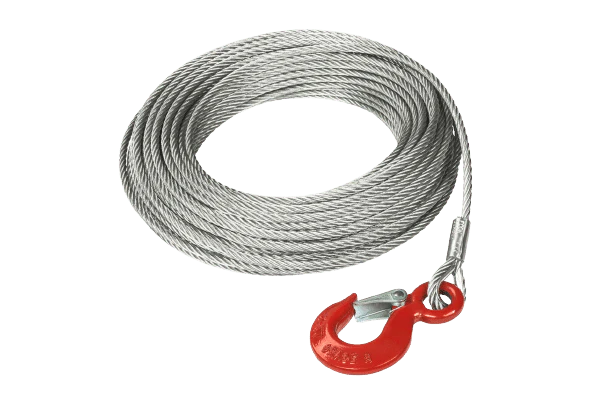

Imer TR225 Replacement Rope
