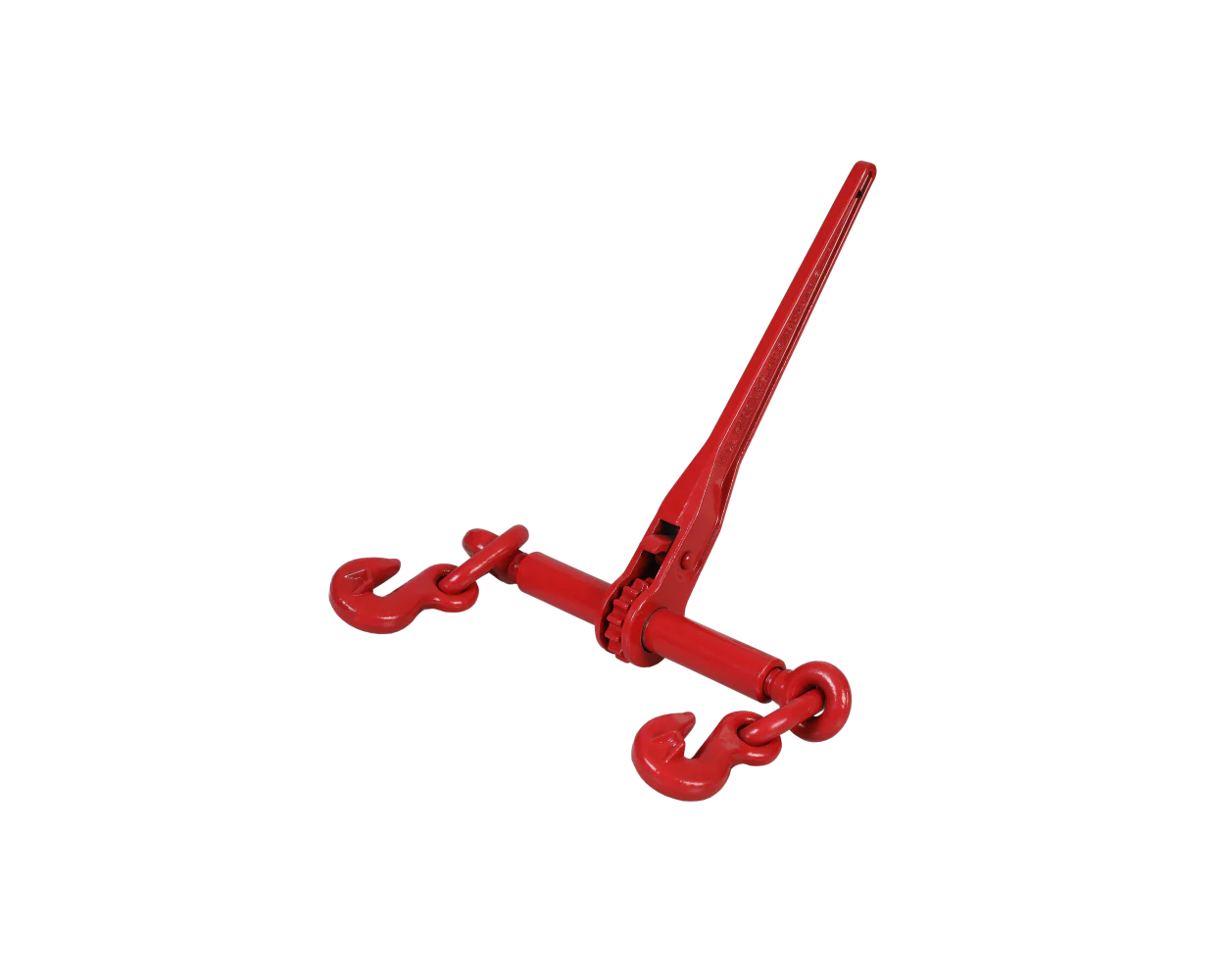

Chain Ratchet Load Binder

Chain Ratchet Load Binders are designed to tension lashing chains in order to securely restrain cargo usually used by lorry and truck drivers in the world of low loaders and heavy haulage. Our high quality cast steel chain binders are made from cast steel and fitted with drop forged grab hooks to work with chain sized between 8 and 13mm (depending on the model you select). Finished in a red paint provides added protection against the elements and a smart finish. A 355mm lever gives greater control and allows the user to apply less pressure to achieve a tighter lashing in a shorter time scale. Safety is always a paramount concern with all lifting and lashing equipment and this innovative chain ratchet features a securing device to prevent the extending/retracting threads unintentionally pulling out.

Best combined with our Grade 80 or Grade 100 lashing chain for the ultimate chain tie-down solution.

Chain Dia	Lashing Capacity	Minimum Breaking Load	Weight
mm	kgs	kgs	kgs
8-10	2450	8575	4.82
10-13	4200	14700	5.92
13-16	5900	20650	7.85





Chain Dia	L.C.	M.B.F.	Weight
mm	kN	kN	kgs
8	40	80.4	4.5
10	63	126	5.4
13	100	212	7.7
16	160	322	10.2
