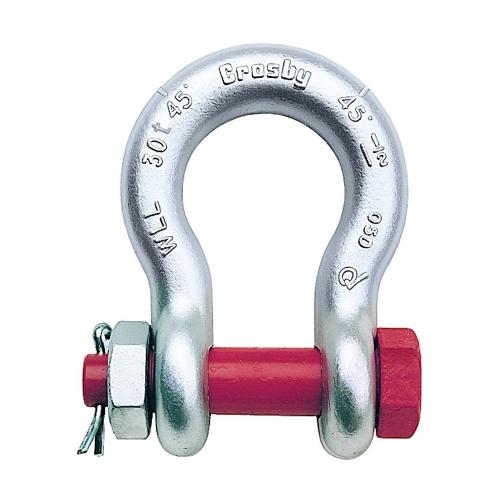

Crosby G-2130 Bolt Type Anchor Shackles
The Crosby G-2130 Bolt Type Anchor Shackles with thin head bolt - nut with a collar pin. meets the performance requirements of federal specification RR-C-271F Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
- Capacities ranging from 330kg up to 150,000kg grade 6
- Working load limit and grade permanently shown on every single shackle
- Forged - quenched and tempered, with alloy pins
- Hot dip galvanised or self-coloured (85t, 120t, and 150t shackles are all hot dip galvanised bows and the bolts are Dimecoated and painted red)
- Capacities ranging from 330kg up to 55,000kg are fatigue rated
- Shackles that are 25,000kg or over are RFID-equipped
- Approved for use at -40˚C up to 204 ˚C
- Meets and exceeds all requirements of ASME B30.26
- Shackles that are 85t or larger are individually proof tested o 2.0 times the working load limit
- Type approval and certification in accordance with ABS 2011 Steel Vessel Rules 1-1-17.7 and ABS Guide for certification of cranes
- 3.1 Certification as standard available for charpy and statistical proof test for pg 79 up to 25,000kg to DNV2.7-1 and EN13889
- All 2130 shackles can meet charpy requirements of 42 joules (31ft-lbs) Avg at -20˚C upon special request
- Look for the Red Pin... The mark of genuine Crosby quality
Select Capacity kg & Nominal Size inch
From $5.13
Original: $14.67
-65%Crosby G-2130 Bolt Type Anchor Shackles—
$14.67
$5.13
Description
The Crosby G-2130 Bolt Type Anchor Shackles with thin head bolt - nut with a collar pin. meets the performance requirements of federal specification RR-C-271F Type IVA, Grade A, Class 3, except for those provisions required of the contractor.
- Capacities ranging from 330kg up to 150,000kg grade 6
- Working load limit and grade permanently shown on every single shackle
- Forged - quenched and tempered, with alloy pins
- Hot dip galvanised or self-coloured (85t, 120t, and 150t shackles are all hot dip galvanised bows and the bolts are Dimecoated and painted red)
- Capacities ranging from 330kg up to 55,000kg are fatigue rated
- Shackles that are 25,000kg or over are RFID-equipped
- Approved for use at -40˚C up to 204 ˚C
- Meets and exceeds all requirements of ASME B30.26
- Shackles that are 85t or larger are individually proof tested o 2.0 times the working load limit
- Type approval and certification in accordance with ABS 2011 Steel Vessel Rules 1-1-17.7 and ABS Guide for certification of cranes
- 3.1 Certification as standard available for charpy and statistical proof test for pg 79 up to 25,000kg to DNV2.7-1 and EN13889
- All 2130 shackles can meet charpy requirements of 42 joules (31ft-lbs) Avg at -20˚C upon special request
- Look for the Red Pin... The mark of genuine Crosby quality
