Premium Load Binder Lashing Chain- Grade 8

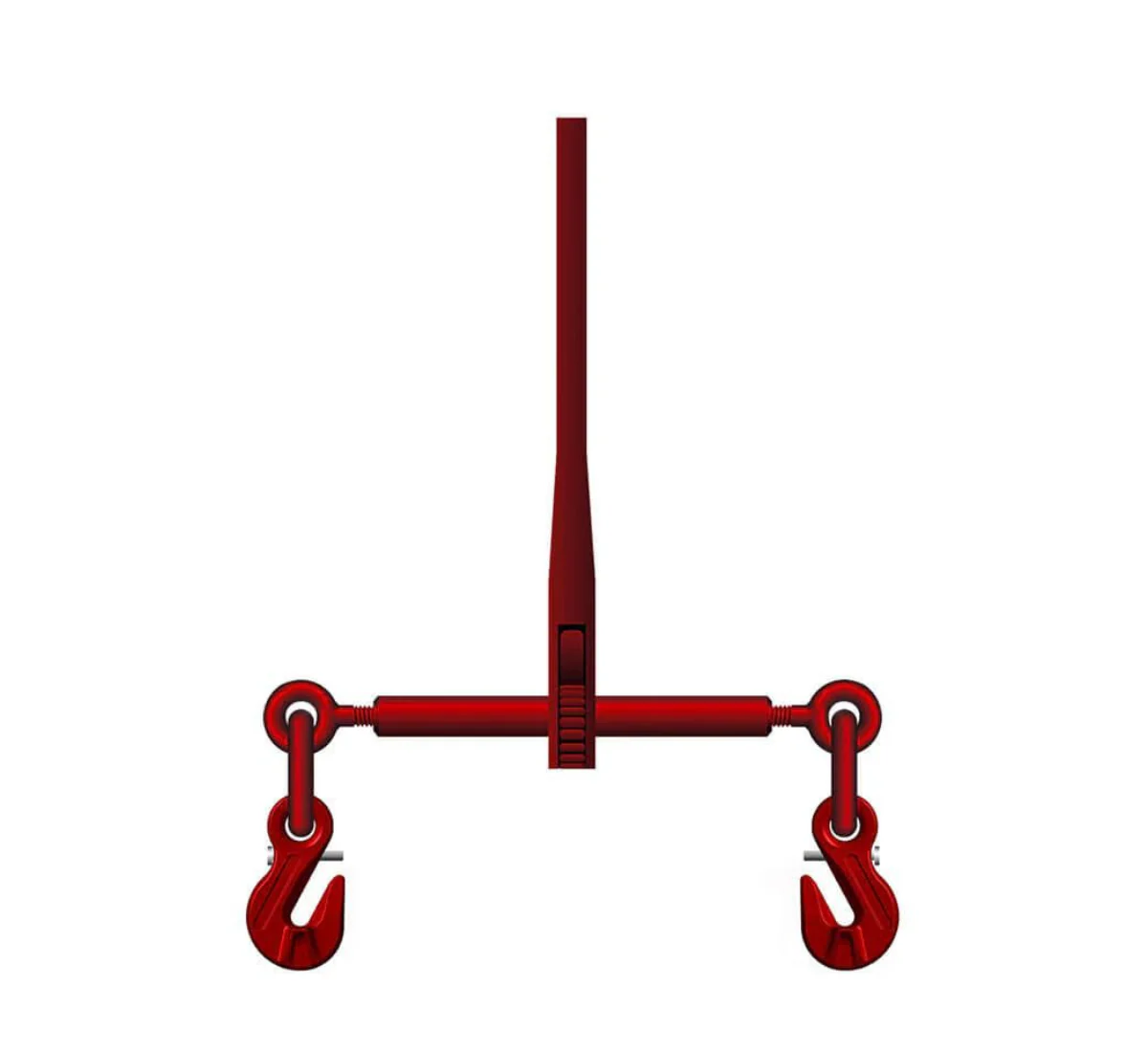

Premium Grade 8 Load Binder Chain conforms to EN818-2 and is made in Europe by Weissenfels (Kito). Used for lashing down heavy cargo on low loaders and trucks as a more heavy duty alternative to ratchet straps. Offering a minimum breaking force up to 1290kN in 32mm, lashing chains are combined with ratchet load binders to secure the heaviest most dynamic loads. Manufactured from quality alloy steel that is quenched and tempered for additional strength and finished with a black paint to provide a great finish. Marked with manufacturers identification numbers and material grade. We can also cut our Grade 8 lashing chain to your exact length requirements and fit the desired chain components prior to shipping.

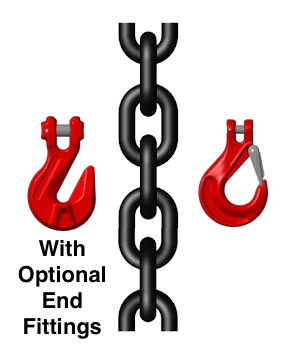

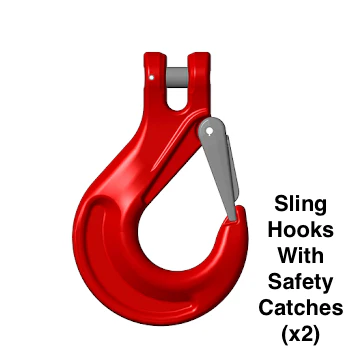

Choose your size and length of chain, then choose your desired premium European Weissenfels end fittings; Grab Hooks (most common), Sling Hooks With Safety Catches or without any at all. When you choose an end fitting we fit one at each end of the chain prior to shipping to save you the time of assembling them yourself.

Chain Dia	Manufacturing Proof Force	Breaking Force	Weight
mm	kN	kN min	kgs/mtr
7	38.5	61.6	1.17
8	50.3	80.4	1.51
10	78.5	126	2.23
13	133	212	3.9
16	201	322	5.79
20	314	503	9.21
22	380	608	11.2
26	531	849	15.2
32	804	1290	23
