Yale Hydraulic Valves & Pressure Switches
Yale Hydraulic Valves & Pressure Switches are designed to limit or allow pressure flow through the hydraulic lift system.
VSM Saftey Check Valves - These safety check valves are used for those applications where pressure drops (eg. holding of a raised load) must be avoided.
Depending on the location in a hydraulic circuit, these valves can have different functions. The model VSM-11 can be directly screwed into the oil port of a hydraulic cylinder and works at this location as a 'hose break fuse'.
The design of the VSM-21 is suitable for a combination with VHP directional valves.
At this location, the VSM-21 ensures that the pressure is held precisely and that pressure drops caused by operating the directional valve are avoided.

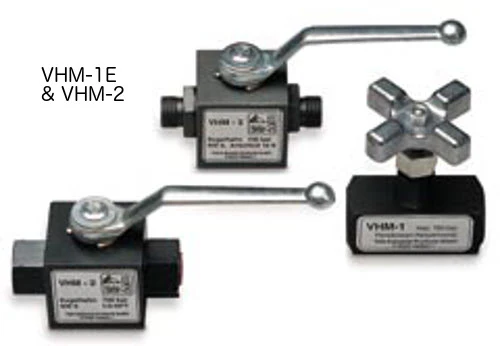

VHM Throttle / Shut Off Valves - These valves are used to shut-off hydraulic lines especially in the middle of the cylinder systems. The needle valve VHM-1 also allows you to throttle and oil flow especially within lifting applications.

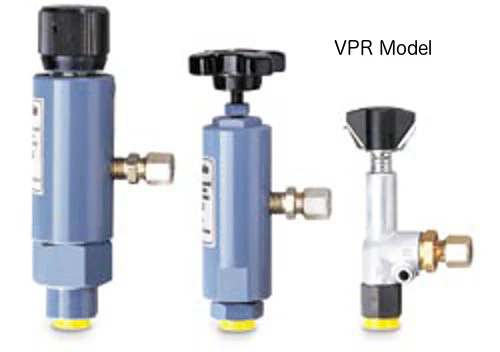

VPR External Pressure Relief Valves- Pressure relief valves are used when the system pressure (force of the connected hydraulic cylinder) should not exceed a certain value.

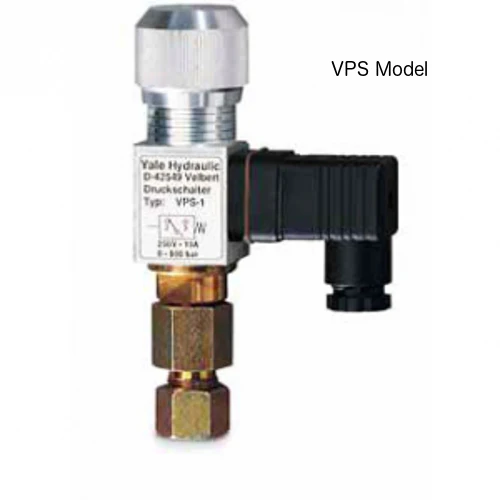

VPS Pressure Switch- This Precision adjustable pressure switch can be set to any pressure value between 5 & 700 Bar by means of a screwed adjuster. When The Preset pressure value is reached, an electrical contact is activated. For use with electrically operating directional control valve.
Original: $137.37
-65%$137.37
$48.08
Description
Yale Hydraulic Valves & Pressure Switches are designed to limit or allow pressure flow through the hydraulic lift system.
VSM Saftey Check Valves - These safety check valves are used for those applications where pressure drops (eg. holding of a raised load) must be avoided.
Depending on the location in a hydraulic circuit, these valves can have different functions. The model VSM-11 can be directly screwed into the oil port of a hydraulic cylinder and works at this location as a 'hose break fuse'.
The design of the VSM-21 is suitable for a combination with VHP directional valves.
At this location, the VSM-21 ensures that the pressure is held precisely and that pressure drops caused by operating the directional valve are avoided.
VHM Throttle / Shut Off Valves - These valves are used to shut-off hydraulic lines especially in the middle of the cylinder systems. The needle valve VHM-1 also allows you to throttle and oil flow especially within lifting applications.
VPR External Pressure Relief Valves- Pressure relief valves are used when the system pressure (force of the connected hydraulic cylinder) should not exceed a certain value.
VPS Pressure Switch- This Precision adjustable pressure switch can be set to any pressure value between 5 & 700 Bar by means of a screwed adjuster. When The Preset pressure value is reached, an electrical contact is activated. For use with electrically operating directional control valve.
