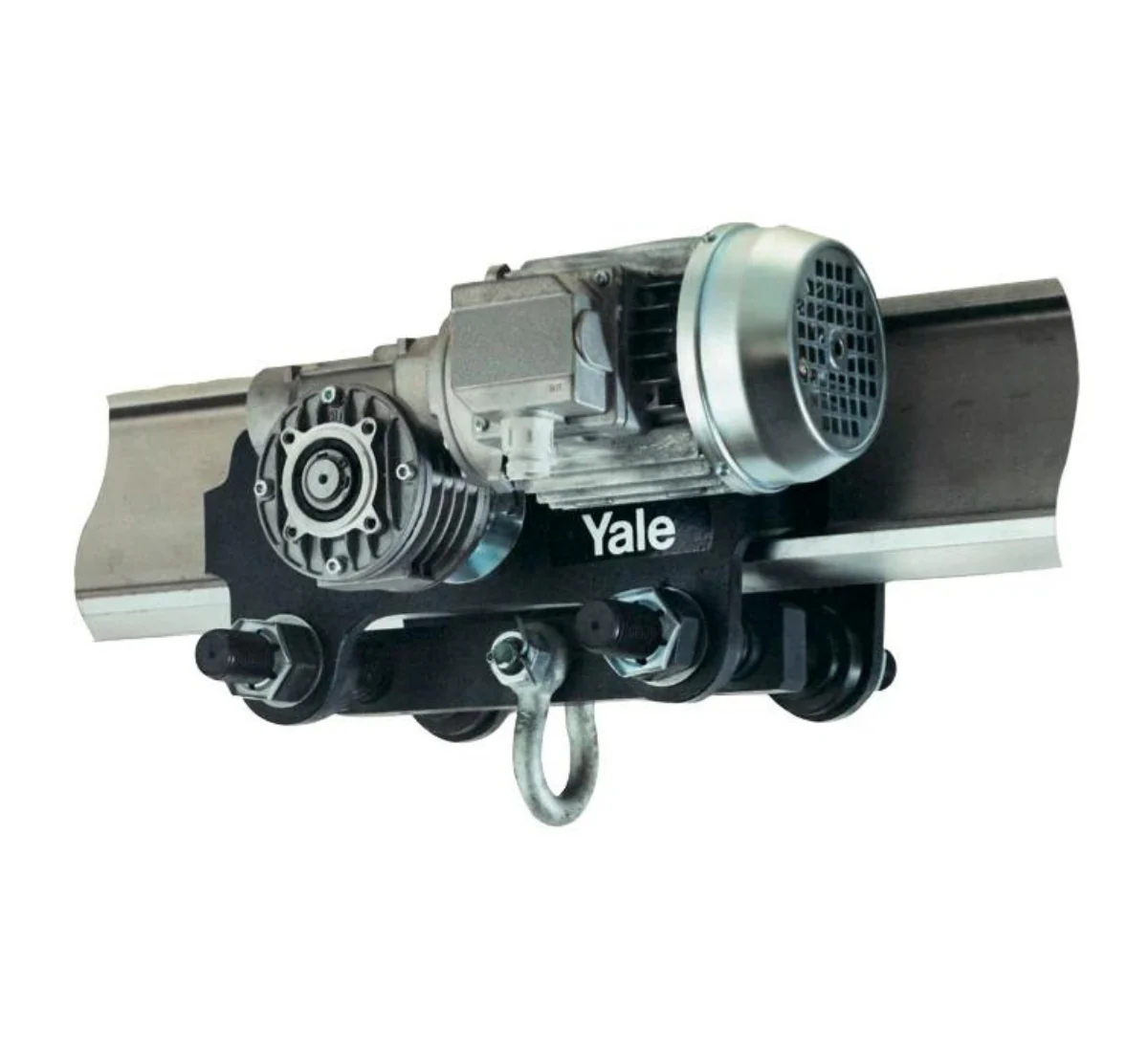

Yale VTE/F 2000kg Electric Travel Trolley

The Yale VTE electric travel trolley is ideal for transporting loads over long distances frequently. Perfectly suited to almost all hoists with top hook suspension due to the universal rated shackle attached to each trolley.

The VTE can be specified with or without a low voltage pendant control (3m standard length, other lengths available on request).

Features:

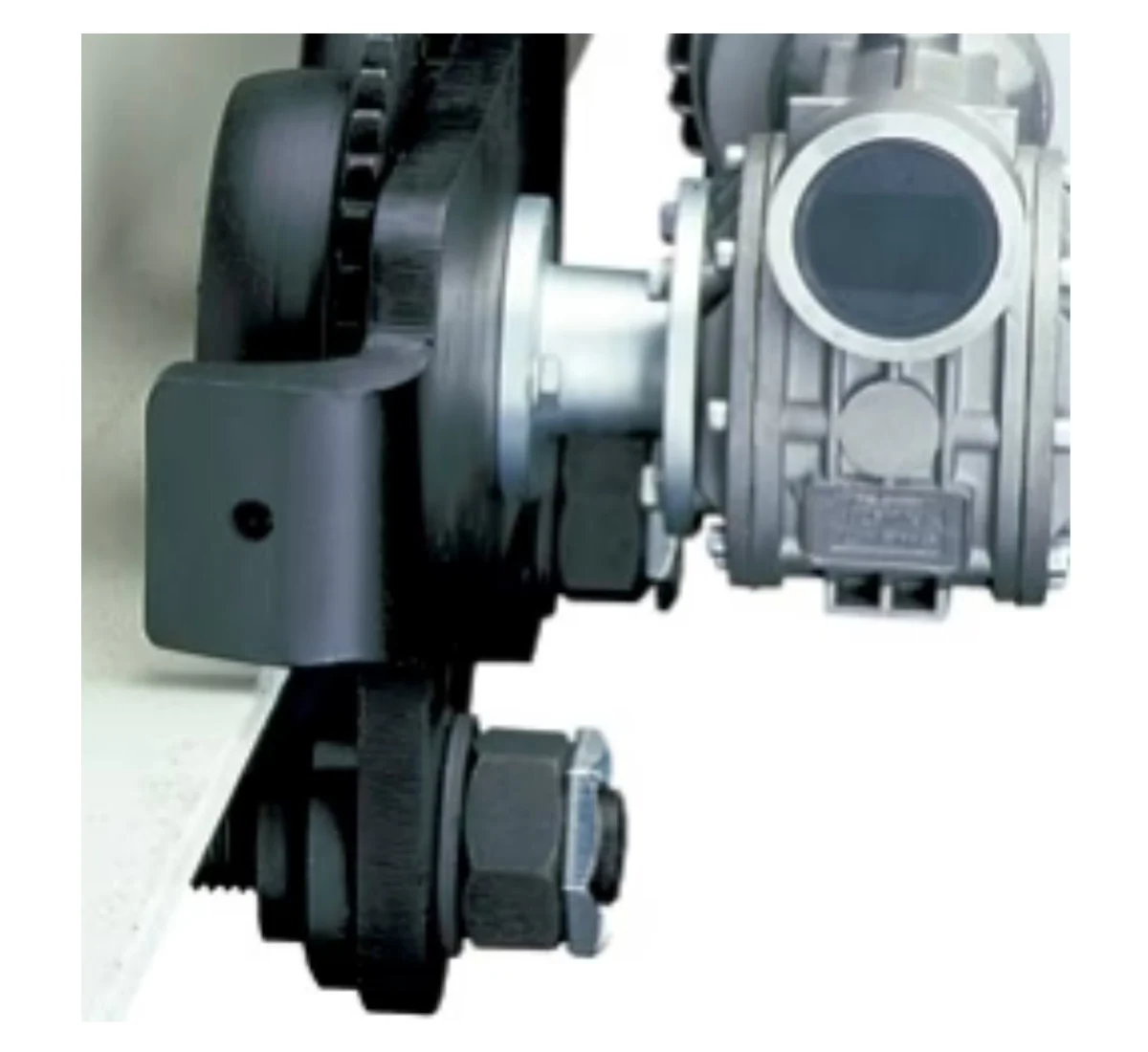

• Worm gear transmission- ensures smooth start
• Self braking
• Compact
• Robust
• IP55 protection
• Supply: 400v 3phase 50hz



Model	Capacity (Kg)	Travel Speed (m/min)	Motor (kW)	Beam Width A (mm)	Beam Width B (mm)	Flange Thickness (mm)	Minimum Curve  Radius (mm)	Closed Height (mm)	Weight (Kg)
VTE 1-A/B-18/U*	1000kg	18	0.18	58-180	180-300	19	0.90	113	19.5
VTE/F 1-A/B-18/U*	1000kg	18/4.5	0.18/0.06	58-180	180-300	19	0.90	113	25.2
VTE 2-A/B-18/U*	2000kg	18	0.18	58-180	180-300	19	1.15	115	26.0
VTE/F2-A/B-18/U*	2000kg	18/4.5	0.18/0.06	58-180	180-300	19	1.15	115	30.2
VTE 3-A/B-11/U	3000kg	11	0.37	74-180	180-300	27	1.40	139	51.0
VTE/F 3-A/B-11/U	3000kg	11/2.8	0.3/0.09	74-180	180-300	27	1.40	139	53.0
VTE 5-A/B-11/U	5000kg	11	0.37	98-180	180-300	27	1.80	161	77.0
VTE/F 5-A/B-11/U	5000kg	11/2.8	0.3/0.09	98-180	180-300	27	1.80	161	80.0



*11 or 11/2.8 m/min travel speed available on request.

• Not to be used for passenger elevation
